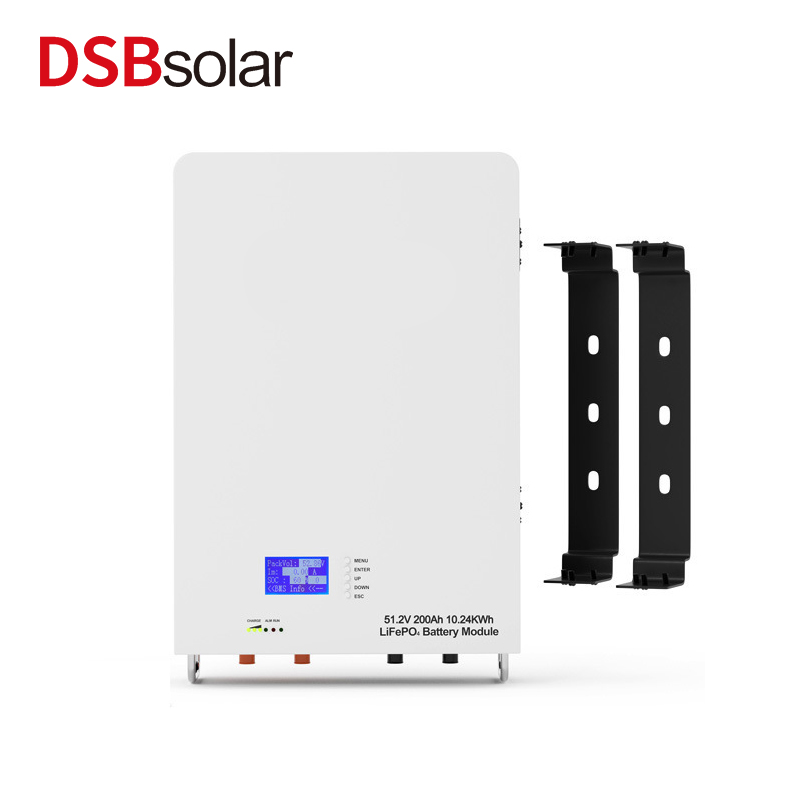

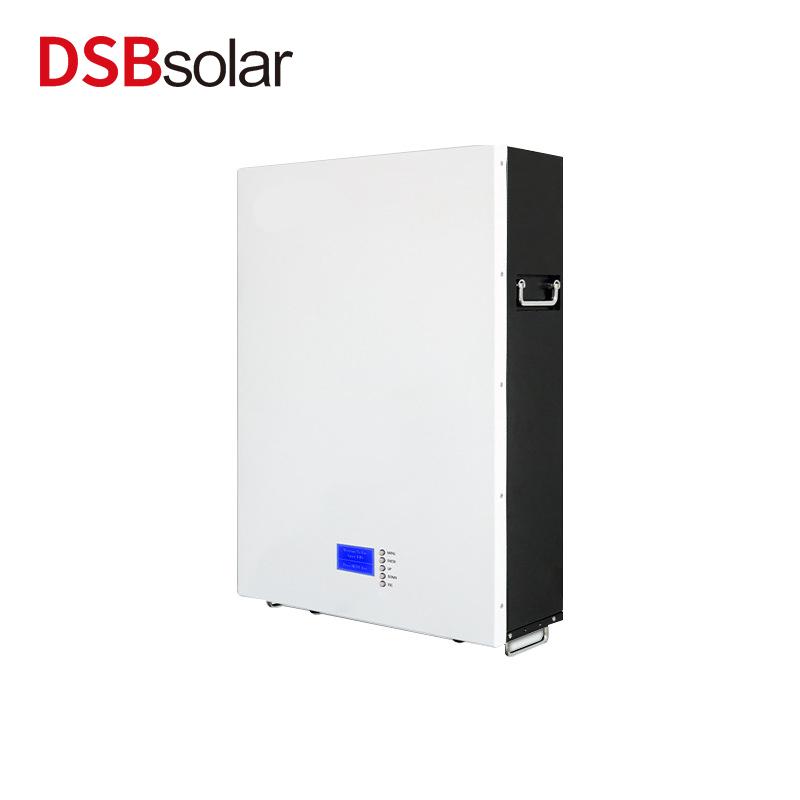

DSBsolar Wall-Mounted Home Battery Energy Storage Systems Lithium Iron Phosphate Battery Emergency Power Supply

Details：

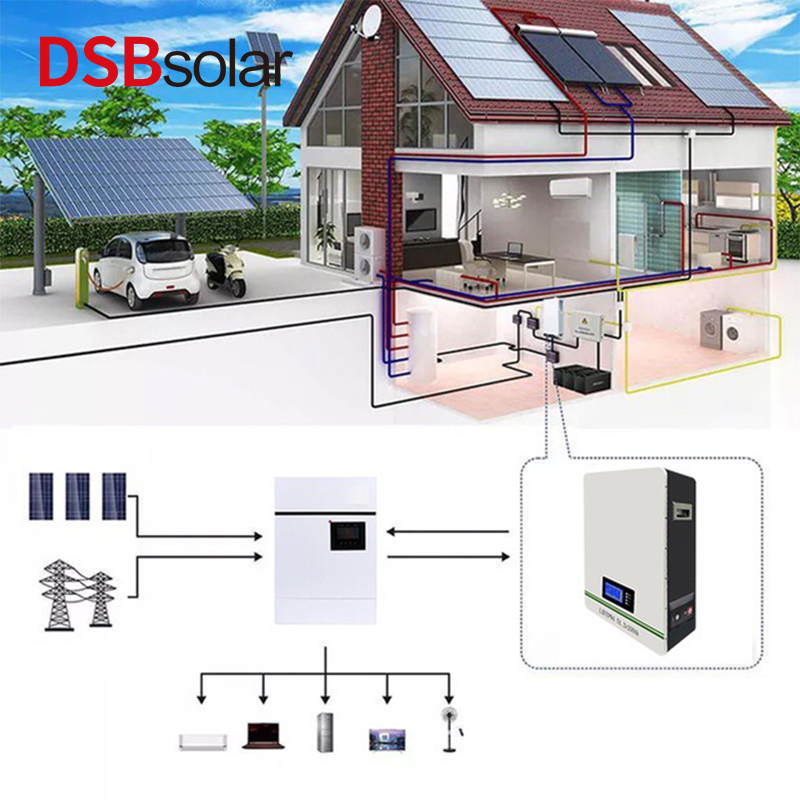

The wall-mounted energy storage system for residential use is a home energy storage system that is installed on the wall. It usually consists of batteries, which can store the electricity generated by solar panels or other renewable energy devices for household use.

The advantages of a wall-mounted energy storage system for residential use include:

1. Energy storage: It can store excess electricity for later use, reducing reliance on the grid.
2. Energy balancing: It can balance the supply and demand of energy in households, making energy use more efficient and sustainable.
3. Emergency backup power: It can serve as a backup power supply for households during power outages or other emergencies.
4. Energy conservation and emission reduction: Through the energy storage system, renewable energy can be better utilized, reducing reliance on traditional energy sources and lowering carbon emissions.

Key Features：

• Light weight, compact size, easy to install
• ≥6000 times, cycle life
• Wall-mounted design no longer worries about footprint there
• BMS system, built-in BMS system to ensure battery safety
• Smart display, you can visually see the battery usage and status
• Easy to install, plug and play fuse protection
• Life span up to 10-15 years

Specification：

Function Parameter
Brand: DSBsolar
Product number: PCPW10000
Norminal Battery Energy: 10240WH
Norminal Capacity: 2000Ah
Norminal Voltage: 51.2V
Dimensions: 860*540*160mm
Internal Resistance: ≤30mΩ
Cycle Life: >3000
Months Self Discharge: <3%

Charge Data
DC Normal Charge Voltage: 58.4±1Vdc
Charge Mode: 0.2Cto 58.4V,then 58.4V,charge current
to0.02C(CC/CV)
Recommended Charger Current: ≤50A
Allowed Max.Charge Current: 100A
Charge Cut-off Voltage: 58.4±1Vdc

Discharge Data
Continuous Discharge Current: 50A
Allowed Max.discharge current: 100A
Discharge cut-off voltage: 40V

Working Condition
Charge Temperature: 0℃ to 45℃ (32°F to 113'F)
Discharge Temperature: -20℃ to 60℃ (-4°℉to 140°F)
Storage Temperature: 0℃ to 40℃ (32°℉ to 104F)
Enclosure Protection Level: IP54

Mechanical Data
Cell&Capacity: LiFePO4 50AH&100AH
Shell material: iron
