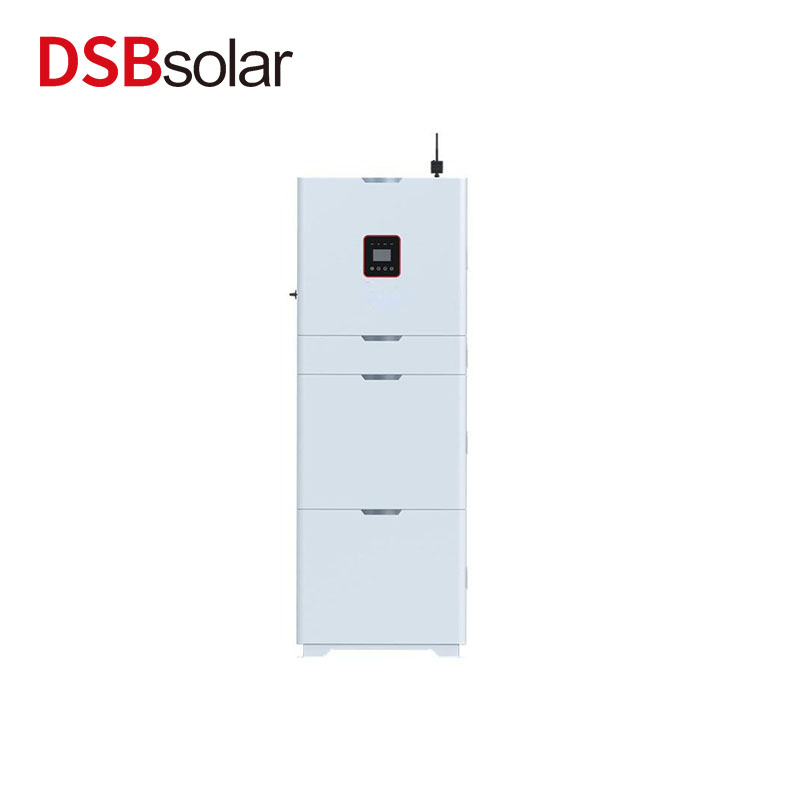

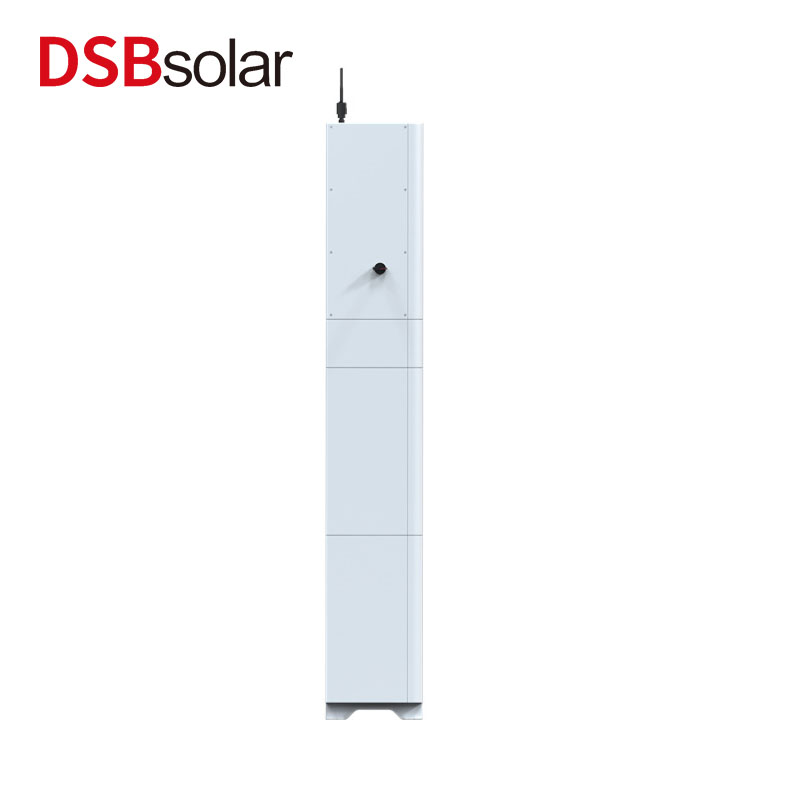

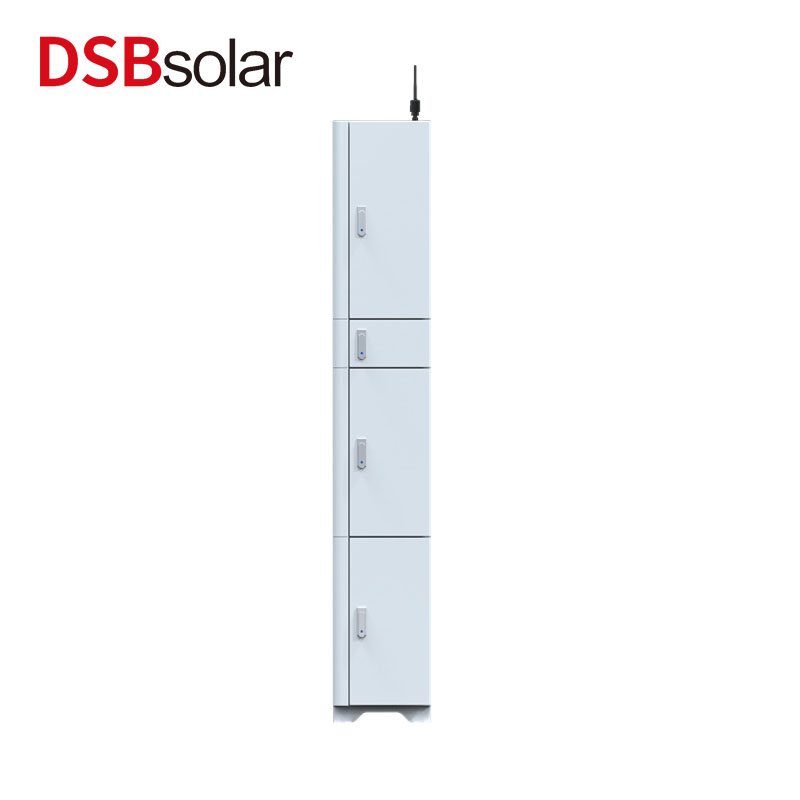

DSBsolar 10Kw/10Kwh/15Kwh/20Kwh High-Voltage Three-Phase Stacked Integrated Photovoltaic Energy Storage System

No.030
  • Smart home energy storage system - Stacked all-in-one machine
  • It is a stacked energy storage system that uses system integration technology to obtain power from photovoltaic, mains, diesel engines and other power supply equipment. Meet the power range of 8-10kW and the power range of 10-20kWh for household power configuration, realize 24 hours uninterrupted power.
$5881.99
  • DSBsolar 10Kw/10Kwh/15Kwh/20Kwh High-Voltage Three-Phase Stacked Integrated Photovoltaic Energy Storage System
  • DSBsolar 10Kw/10Kwh/15Kwh/20Kwh High-Voltage Three-Phase Stacked Integrated Photovoltaic Energy Storage System
  • DSBsolar 10Kw/10Kwh/15Kwh/20Kwh High-Voltage Three-Phase Stacked Integrated Photovoltaic Energy Storage System
Desciption
Rated power KW: 10
Additional parameter: Connected PV
Brand: DSBsolar
Protection type: Intelligent BMS
Charging time: 3
Number of USB ports: wifi connection available
Product Certification: CE CB
Weight: 222.5-352.5kg
Storage environment: 20~45 ° C
Dimensions: 653*301.5*1852
Output frequency: 50/60
Warranty: 5 years
Protection level: IP21
Battery specification: Product A
Standard type: European standard
Communication protocol: 485, can
Output current: 40
Battery quantity: 32
Battery type: Lithium iron phosphate
Working environment: -20~65℃
