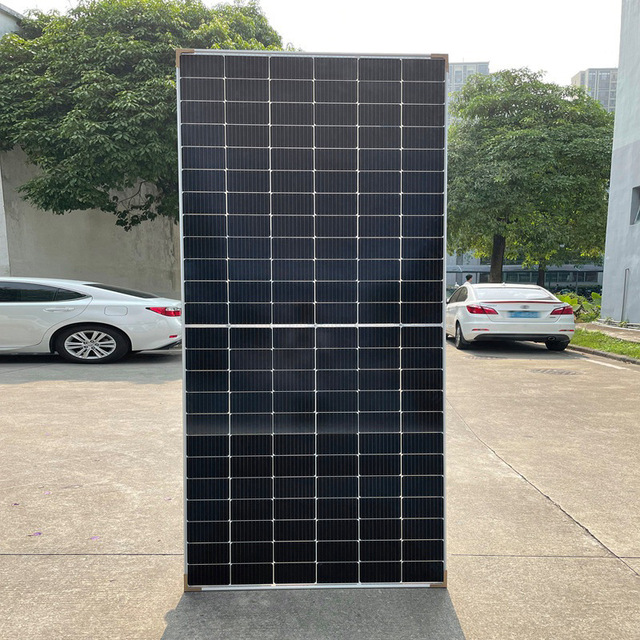

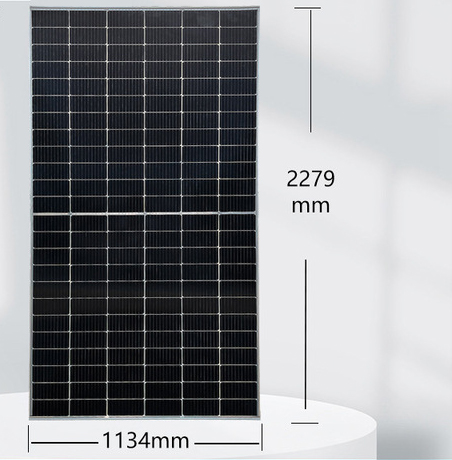

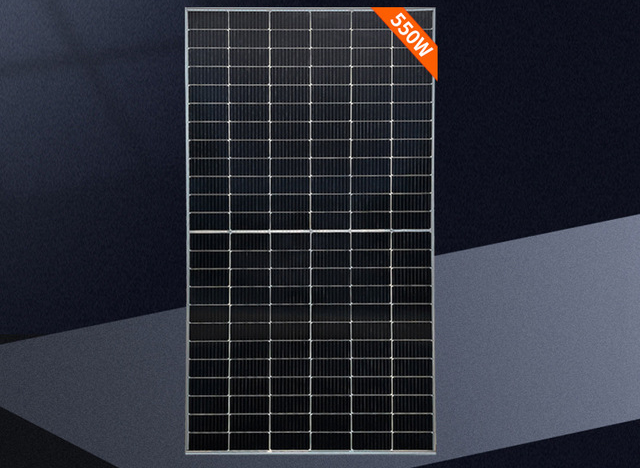

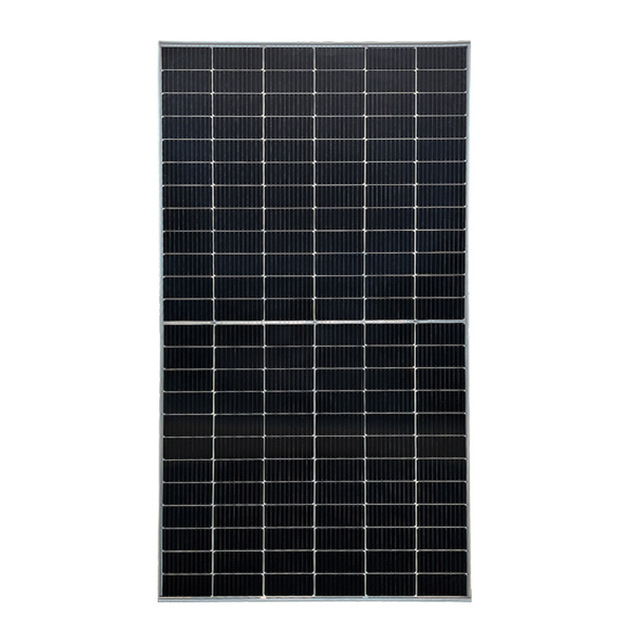

DSBsolar New A-Class 550W 182 Monocrystalline Silicon Solar Panel Outdoor Grid-Connected Photovoltaic Module

No.025
Spark half sheet single-sided components, using efficient single-crystal multi-main gate, PERC technology and half sheet structure, not only can absorb energy from the front of the component, but also can absorb reflevered light from the back, scattered light, with better power generation capacity, lower temperature coefficient, smaller shielding loss, and stronger mechanical load bearing capacity. The cost of electricity generation (LCOE) fell by 6-8%.
$35.99
  • DSBsolar New A-Class 550W 182 Monocrystalline Silicon Solar Panel Outdoor Grid-Connected Photovoltaic Module
  • DSBsolar New A-Class 550W 182 Monocrystalline Silicon Solar Panel Outdoor Grid-Connected Photovoltaic Module
  • DSBsolar New A-Class 550W 182 Monocrystalline Silicon Solar Panel Outdoor Grid-Connected Photovoltaic Module
  • DSBsolar New A-Class 550W 182 Monocrystalline Silicon Solar Panel Outdoor Grid-Connected Photovoltaic Module
Desciption
  • Component parameters: SFM-550
  • Maximum power (Pmax/W): 550
  • Component efficiency (%): 21.30
  • Open circuit voltage (Voc/V): 49.95
  • Short circuit current (Isc/A): 14.05
  • Maximum operating voltage (Vmp/V): 41.97
  • Maximum operating current (Imp/A): 13.11
  • Power tolerance: 0~+5w
  • Temperature coefficient of short circuit current: +0.046%℃
  • Open circuit voltage temperature coefficient: -0.276%℃
  • Maximum power temperature coefficient: -0.350%℃
