Desciption

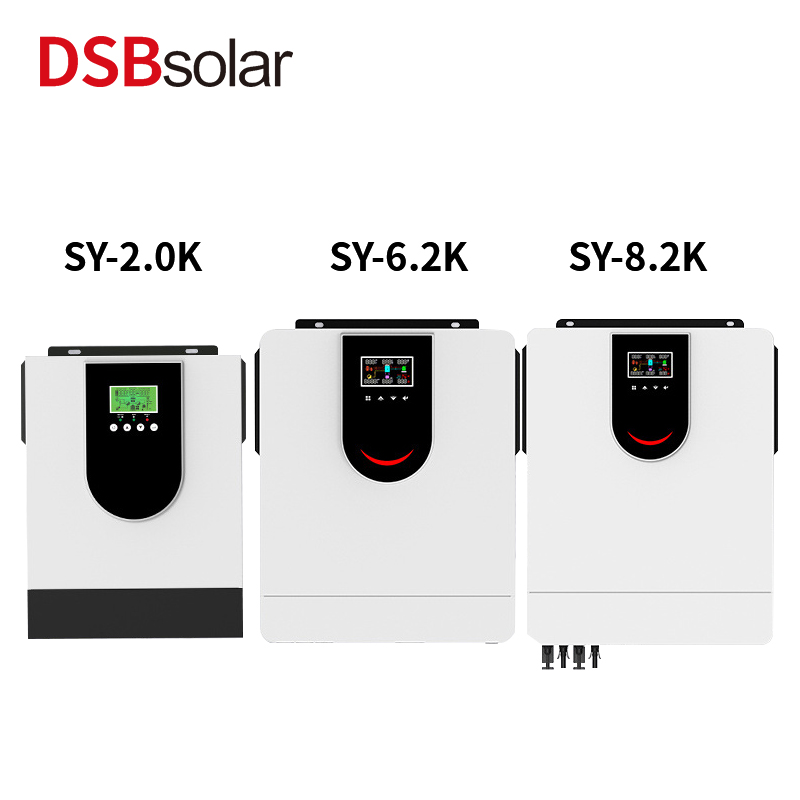

Model: SY2.0K; SY3.2 K.
Rated output power: 2000VA/1600W; 3200VA/3000W
Voltage: 230VAC
Optional voltage range:
170~280VAC for personal computers
90~280VAC for household appliances
Frequency range: 50 Hz/60Hz Automatic
Ac voltage regulation: 230VAC±5%
Surge power: 4000VA; 6400VA
Efficiency (peak) panel to inverter: 98%
Efficiency (peak) battery board to inverter: 94%
Conversion time: 10ms(PC); 20ms(Home appliances)
Battery voltage: 12VDC 24VDC
Floating charging voltage: 13.5VDC 27VDC
Overcharge protection: 16VDC 33VDC
Maximum AC charging current: 60A
Panel maximum power: 2000W 3000W
MPPT voltage range: 30-400VDC
Maximum open circuit voltage of the panel: 400VDC
Maximum solar charging current: 80A
Product size: 370*280*100
Packing size: 440*340*180

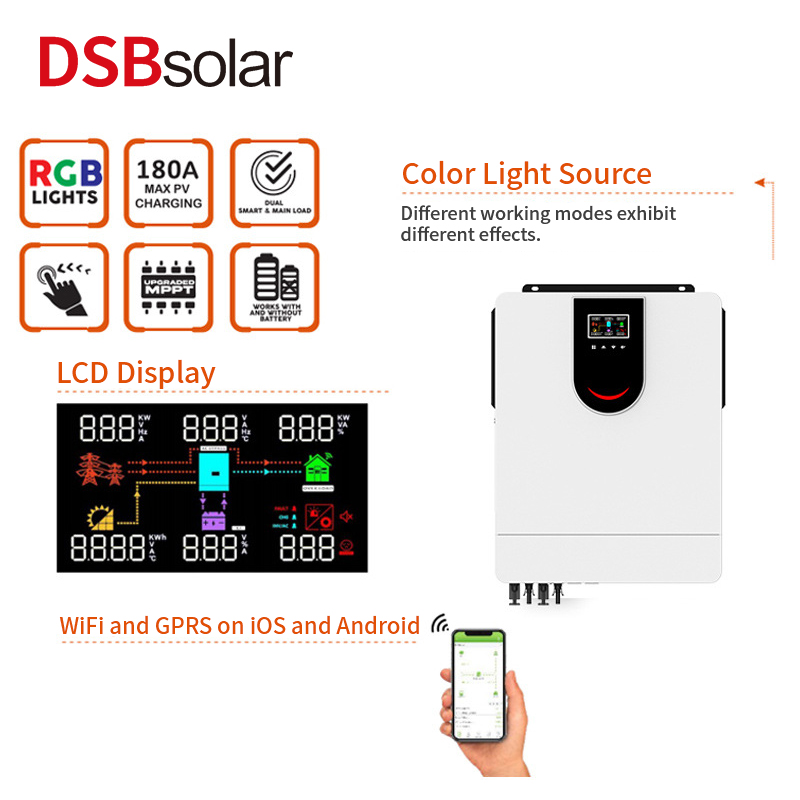

Communication port: RS232/GPRS/WIFI
Humidity: 5% to 95% relative humidity (no condensation)
Operating temperature: -10~50℃
