The "light storage and charging" integrated charging station uses clean energy power supply, and stores electricity through photovoltaic power generation. Photovoltaic, energy storage and charging facilities form a micro-grid to intelligently interact with the public grid according to demand. The application of the energy storage system can also alleviate the impact of the charging pile on the regional power grid during the high-current charging process. It can not only supply green electric energy for electric vehicles, but also realize auxiliary service functions such as power peak-shifting and valley filling, which can effectively improve the operation efficiency of the system.

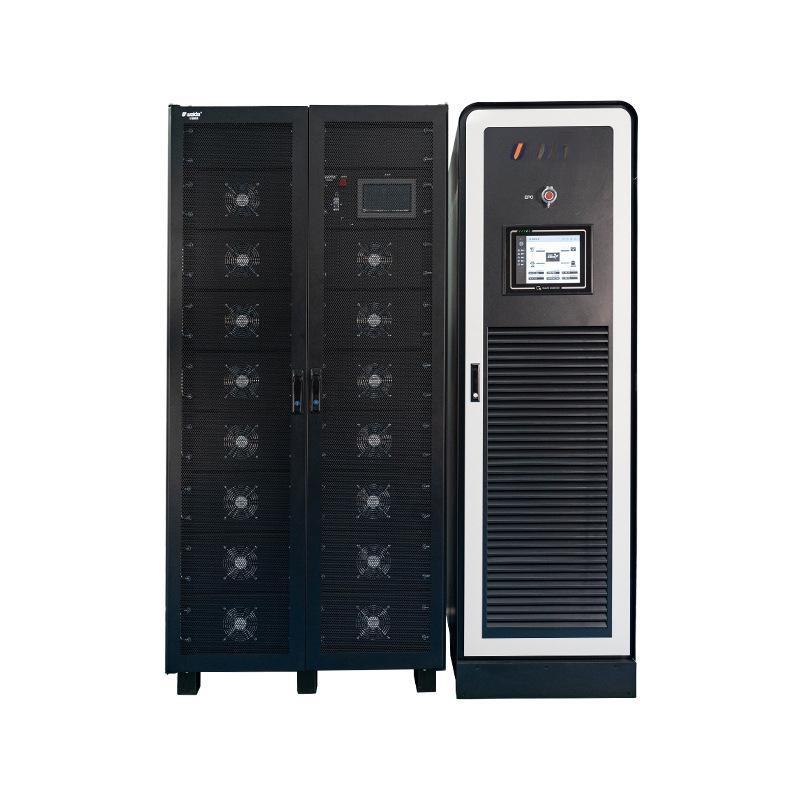

Storage Tank system
Model class: 100KW/215KWh
Storage capacity: 215KWh
Energy storage configuration: 1 768V280AH battery energy storage system
System voltage: 768V
Operating voltage range: DC672V-DC876V(2.8V-3.65V)
Battery type: LFP
Cycles: >6000 times (100%DOD, remaining 80%, 0.5C)
Remaining power at the end of 10 years: >150kWh(70%)
Dc Side Parameter
Voltage range: DC650V to DC900V
Dc channel: 1
Single channel rated current: 175A
Ac Grid Connection Parameters
Output line system: 3W+PE
Rated power: 100KW
Rated voltage: AC 380V
Rated current: 151A
Voltage range -15% to +10%
Rated frequency: 50Hz/60Hz
Frequency range: +2Hz
Power factor: 1
Output harmonic: ≤3%
Ac current distortion: <3%(rated power)
Protection
Input anti-reverse: Yes
Output overcurrent: Yes
Output overvoltage: Yes
Island prevention: Yes
Insulation resistance detection: Yes
Kinetic Energy
Charge and discharge efficiency: ≥87%
Data acquisition frequency: ≤30s/ time
Remote diagnostic recovery: Yes
Environment
Operating temperature: -20℃~55℃(derated above 45℃)
Storage temperature: -20%C-60%C
Relative humidity: 0%RH to 95%RH, non-condensing
Working altitude: 45℃, 2000m; The derated usage is 2000m to 4000m
Noise: ≤70dB
Life Span
Equipment life cycle: 10 years (2 charge and 2 discharge per day (300 days per year))
Life cycle equipment availability factor: >99%
Other
Communication mode: CAN/RS485
Isolation mode: None
Protection class: IP54
Cooling method: air conditioning
Fire: perfluorohexone fire extinguisher
Size: 1500*1288*2500mm(W*D*H)
