Desciption
Battery Module

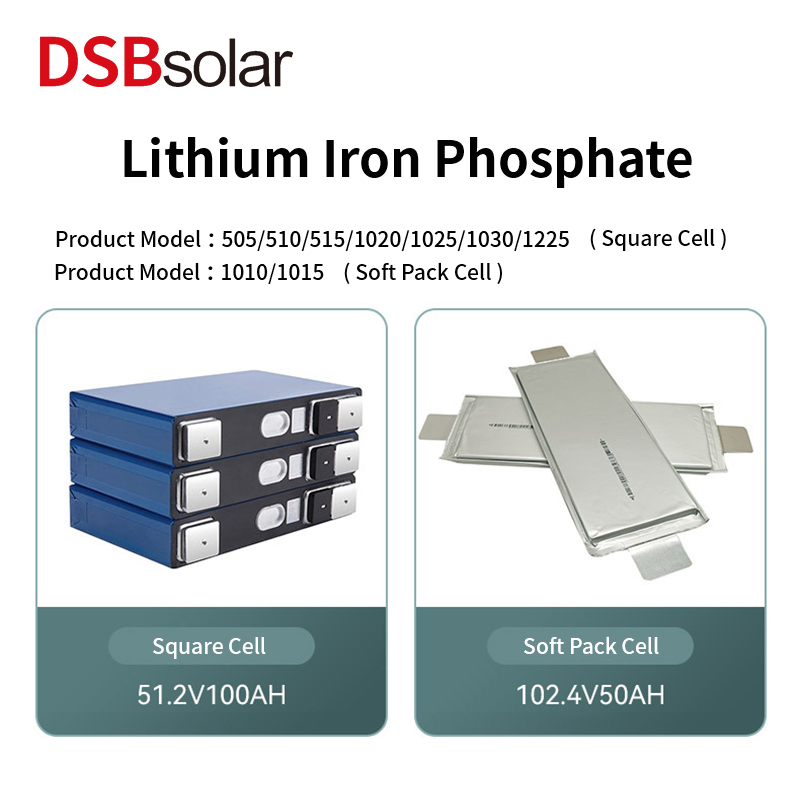

Cell type: Lithium iron phosphate battery LiFePO4
Rated energy: 5.12KWh
Rated capacity: 100Ah
Nominal voltage: 51.2V
Operating voltage range: 44.8V~58.4V
Maximum continuous charging current: 50A
Maximum continuous discharge current: 100A
Net weight: 53.5Kg
Overall dimensions [L*W*H](mm): 560*508*186
Operating temperature range: Charging :0~45℃; Discharge :-20~50℃
Number of cycles: 6000 times
Communication mode: CAN/RS485
Warranty: 5 years
System Base
Net weight: 11.8Kg
Overall dimensions [L*W*H](mm): 560*508*150
Inverter (optional) Model: HZPV18-5248 PRO
Inverter rated power: 5200VA/5200W
Instantaneous output power: 10400W
Voltage: 230VAC±5%
